Machine Material	Mild Steel & Cast Iron
Machine Type	Semi-Automatic
Capacity	15-25 books / mint
Weight	350 kg
Usage/Application	Hardcover Book Spine Rounding
Driven Type	Pneumatic / Motorized
Heating Type	Thermostatic Heating
Automation Grade	Semi-Automatic
Voltage	220V AC
Material	Hardbound Books, Diaries, Notebooks
Power Source	1 Phase
Air Compressor	Yes
Power Rating	1.5 kW
Production Speed	Up to 1500 Books per hour
Phase	Single Phase

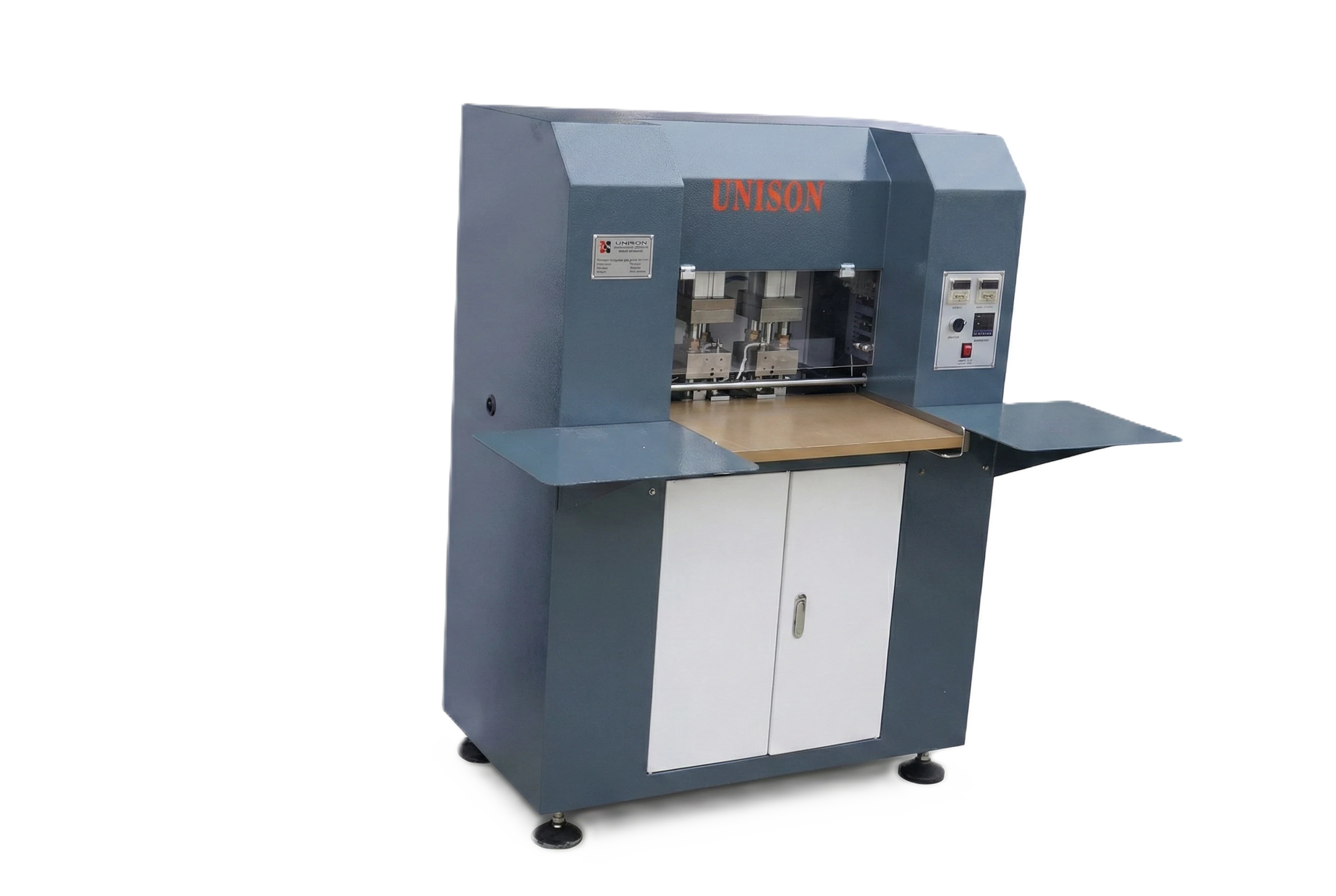

The Book Case Rounding Machine is specialized equipment designed to give a perfect, permanent rounded shape to the spine of hardcover books, diaries, and premium notebooks. By using a heated shaping mechanism, it ensures a tight, professional curve that enhances the book's aesthetic and structural integrity.
This spine rounding machinery is widely used in the bookbinding and print finishing industry, essential for producing high-quality hardbound books, encyclopedias, and luxury stationery.1. Pneumatically controlled pressing and rounding mechanism for consistent and uniform spine shaping.
2. Adjustable temperature control system to accommodate different binding materials and cover thicknesses.
3. Easy-to-adjust workstation to handle various book formats and spine widths efficiently.
4. Sturdy safety guards and dual-hand operation controls to ensure maximum operator safety.



Model	BCR-300	BCR-450	BCR-600
Spine   Width	10-60mm	10-60mm	10-80mm
Book   Length	Up to 300mm	Up to 450mm	Up to 600mm
Speed	15-25   cycle /minute	15-25   cycle /minute	15-25   cycle /minute
Power	1.5kw	2.2kw	3kw
Dimension	800*700*1300mm	1000*800*1300mm	1200*900*1300mm
Weight	250kg	350kg	450kg
