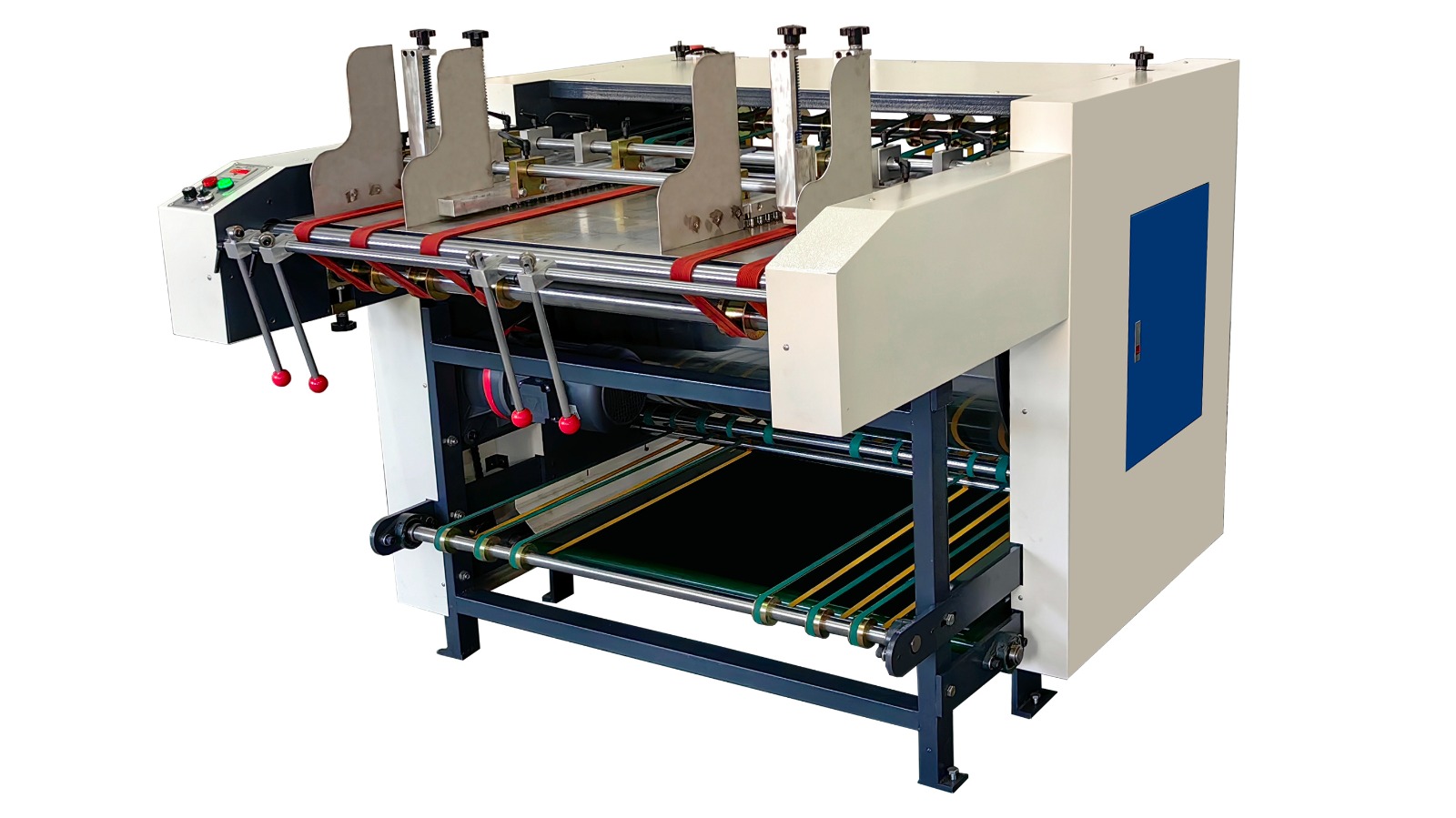

Fully Automatic V Grooving Machine (drum type)
| DESCRIPTION | |
|---|---|
| Model | UGM 300 |
| Working Speed | 30m/min (80-160 pcs/min) |
| Width of Paper Board | 50-920 mm |
| Length of Paper Board | 120-600 mm |
| Grooves Gap | 50-950 mm |
| Groove angle | 80-140 |
| Thickness of Paper Board | 0.8-3 mm |
| Power | 2.75 Kw |
| Voltage | 3 Hp |
| Machine Weight | 1500 kg approx |
| Dimension | 1850x1480x1300 approx |
It adopts double channel conveyor to feed the board to the grooving slots and double output, and it has single aligning system which only required lefty side straight which is easier for machine adjustment. The standard machine equips 8 pieces of high accuracy blade seats with double line and the grooving angle is adjustable.
