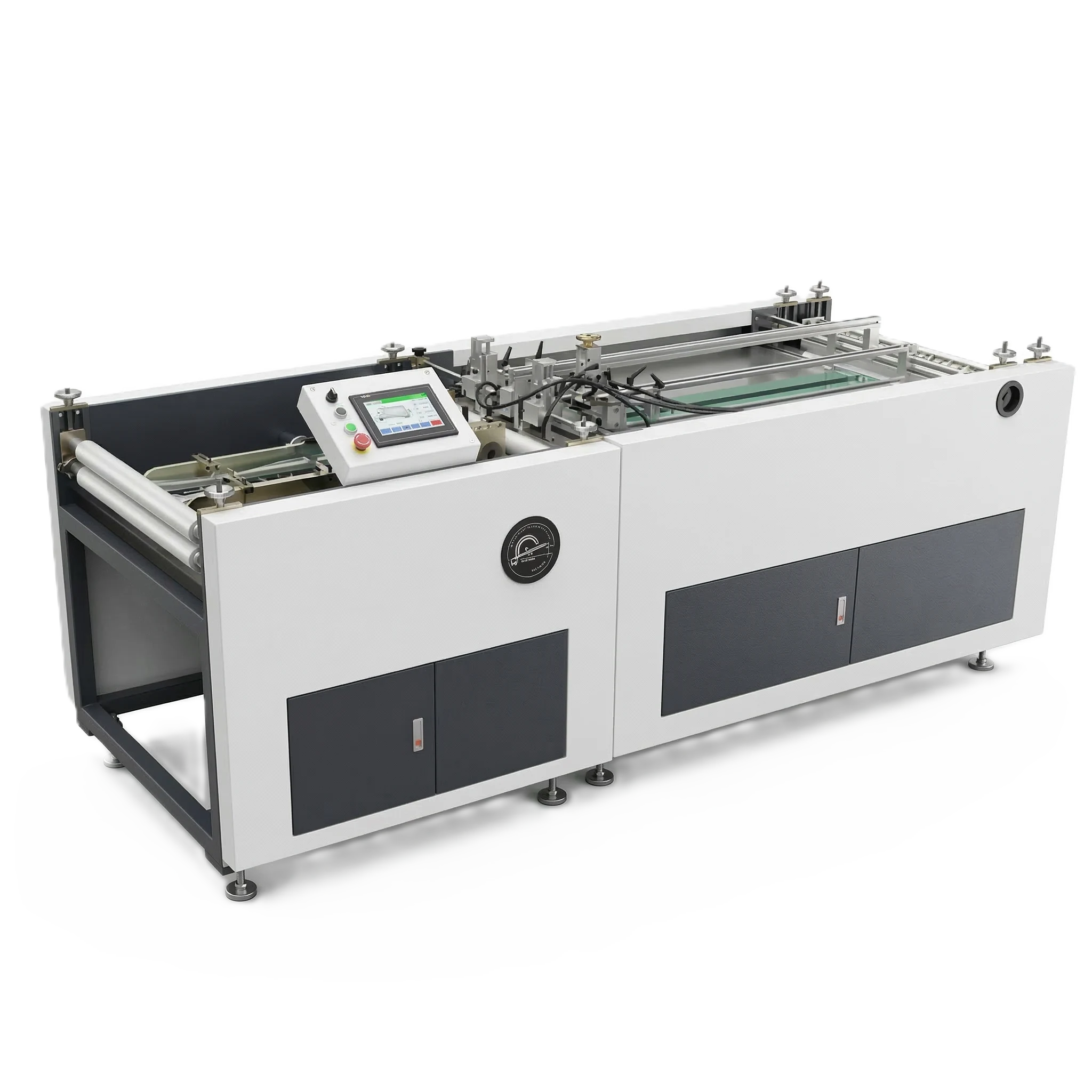

Four Side Folding Machine

Model JX-C900 JX-C1200 JX-C1700
Max cover size 450×900mm 600×1200mm 700×1700mm
Min cover size 90×150mm 90×180mm 100×180mm
Board thickness 1-3mm 1-3mm 1-3mm
Speed 0-20pcs/min 0-20pcs/min 0-20pcs/min
Power 2kw/220V 2kw/220V 2kw/220V
Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa
Machine size 2480×1140×1380mm 2760×1300×1420mm 3260×1400×1420mm
Machine weight 1100Kg 1200Kg 1400Kg
Automatic four side covering machine is specialized in producing note book cover,hardcover,table calendar,mobile phone box cover,Gift box cover ,file folder etc . Positioned well issue paper and cardboard, through the pre-pressure, pack both sides of edge, pressure angle, packed edges of front and back, the whole of process become to be synchronous, make it can fold four sides automatically. Not only high precision, high speed, and fold the angles beautiful, fold the sides perfectly. This machine is the preferred equipment for printing and packaging industry, mass production
A unique cam mechanism to control the pressure angle, edging and other processes, so that the machine performance is stable and reliable product package surface appearance, sturdy bag side.
Platform-type production process, improve production efficiency and reduce the product of friction, so that products, light is more smooth and beautiful.
