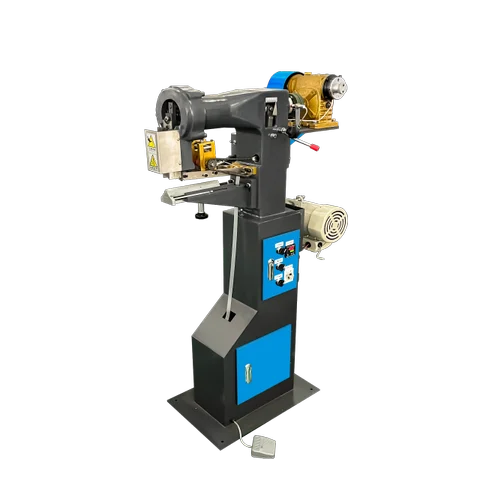

Manual Single Corner Pasting Machine
| Capacity | 5-15 pcs/mint |
| Weight | 150 KG |
| Model Name/Number | CORNER CUTTING -300 |
| Driven Type | MOTORIZED |
| Voltage | 220 VAC |
| Automation Grade | Semi-Automatic |
| Material | IRON |
| Power Supply | SINGLE PHASE |
| Production Speed | 30-45 PCS PER MIN |
| Size | 800 x 450 x 1500 mm |
This machine is used for rigid box, inside box, using high temperature adhesive tape to save the cost.Its product has correct angle, beautiful appearance, quick speed and favorable price. It is the perfect equipment for box making.
1. Motorized single arm press device, equipped with temperature controller
2. Turned over box by hand, workable for various kinds of boxes
3. Environmental hot-melt tape is used to paste corner.
|
Model |
CC-300 |
|
Height of box |
10-300mm |
|
Min box size |
40*50*15mm |
|
Speed |
5-15 pcs/min |
|
Power |
0.5kw/220V |
|
Machine dimension |
800*450*1500mm |
|
Weight of machine |
150Kg |
