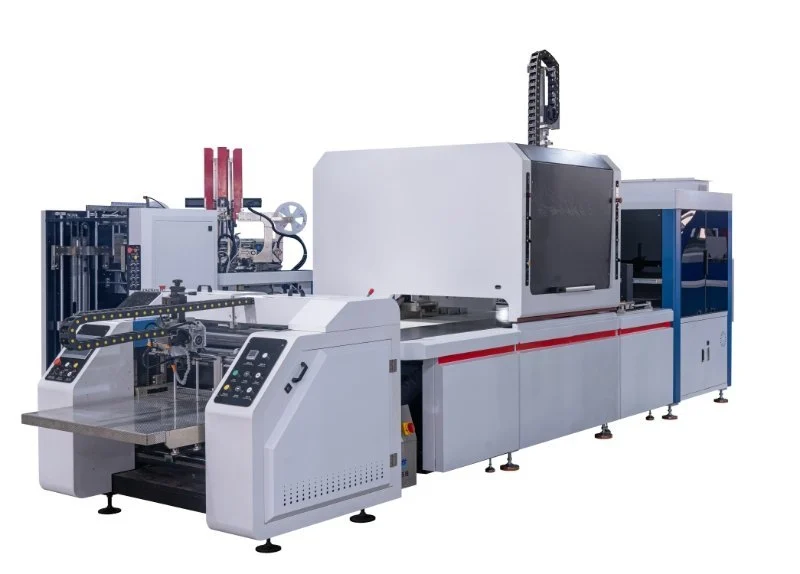

Fully automatic box making machine
| Model | JX-CS800A |
| Paper size | L130-800mm, W100-760 |
| Max. box size | 450 × 450 × 120mm |
| Min. box size | 85 × 85 × 15mm |
| Fold-in depth | 10-100mm |
| Side-fold width | 10-60mm |
| Paper thickness | 80-250gsm |
| Paper stacking height | 350mm |
| Gray board size | 115*115mm-700*700mm |
| Stacking height of gray boards | 900mm |
| Thickness of gray board | 1-3mm |
| Speed | ≤26pcs/min |
| Total power of equipment | 22KW / AC380V |
| Accuracy | ± 0.1mm |
| Air pressure | 20L/min 0.8Mpa |
| Machine weight | 5600kg ( est. ) |
Machine Features/Description:
- It adopts high speed automatic paper feeding system, which is controlled pneumatically, and its structures simple and reasonable.
- It adopts PLC control, featuring in simple operation. The troubles are displayed directly on the HMI, which helps the operator easily remove them.
- New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding. And the copper scraper is more durable.
- Paper feeding and positioning system adopt imported high precise photoelectric control device to make the paper and cardboard location more accurate.
