Machine Material	Mild Steel & Cast Iron
Machine Type	Semi-Automatic
Capacity	20-40 per /mint
Weight	250 kg
Usage/Application	Clip Board Clip Riveting
Driven Type	Motorized / Pneumatic
Rivet Type	Hollow / Tubular Rivets
Automation Grade	Semi-Automatic
Voltage	220V AC
Material	MDF, Cardboard, Plastic Board
Power Source	1 Phase
Air Compressor	Yes
Power Rating	0.75 kW
Production Speed	Up to 2000 Boards per hour
Phase	Single Phase

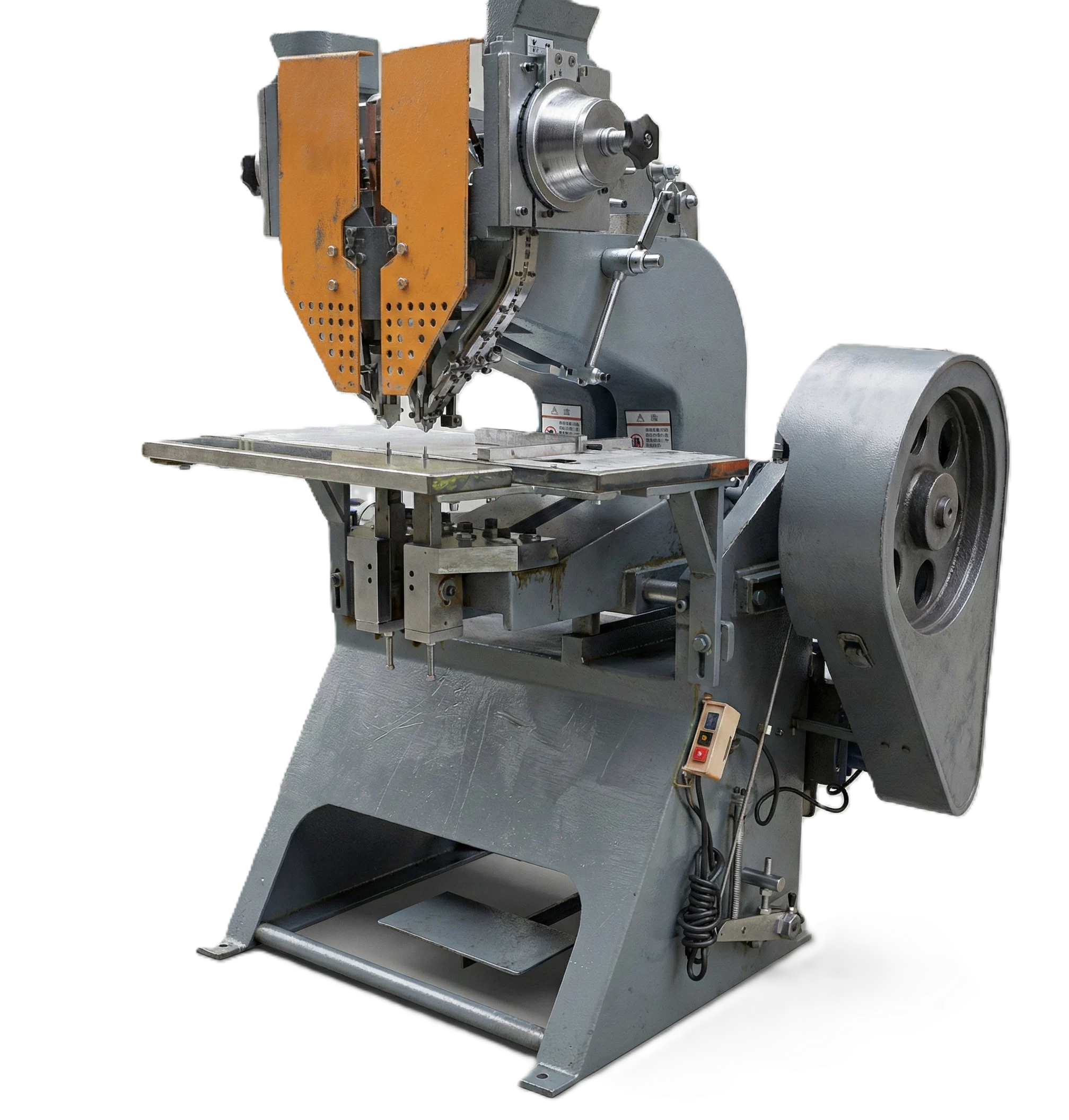

The Clip Board Clip Riveting Machine is specialized equipment designed for firmly attaching metal clips to clipboards, exam boards, and writing pads using rivets. By upgrading from manual pressing to automated riveting, it ensures a tight, secure bind and greatly enhances production efficiency.
This riveting machinery is widely used in the stationery manufacturing and packaging industry, specifically for producing office clipboards, menu holders, file folders, and writing boards.1. Automatic rivet feeding mechanism for high-speed and uninterrupted operation.
2. Precision punching and pressing system ensures tight and neat riveting without damaging the board.
3. Adjustable workstation to accommodate various clipboard sizes and clip dimensions.
4. Built-in safety foot pedal and protective guards for secure and easy operator control.



Model	CRM-400	CRM-600	CRM-800
Board   thickness	2-10mm	2-10mm	2-10mm
Board   Width	Up to 400mm	Up to 600mm	Up to 800mm
Throat   Depth	400mm	600mm	800mm
Speed	20-40   cycle /minute	20-40   cycle /minute	20-40   cycle /minute
Power	0.75kw	0.75kw	1.1kw
Dimension	800*600*1400mm	1000*600*1400mm	1200*800*1400mm
Weight	200kg	250kg	300kg
