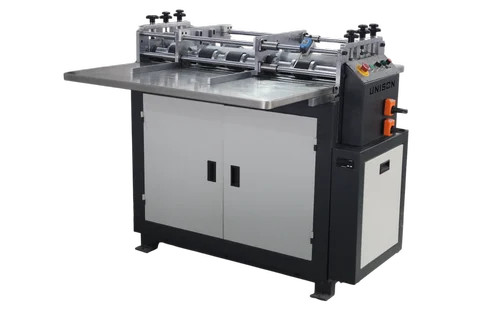

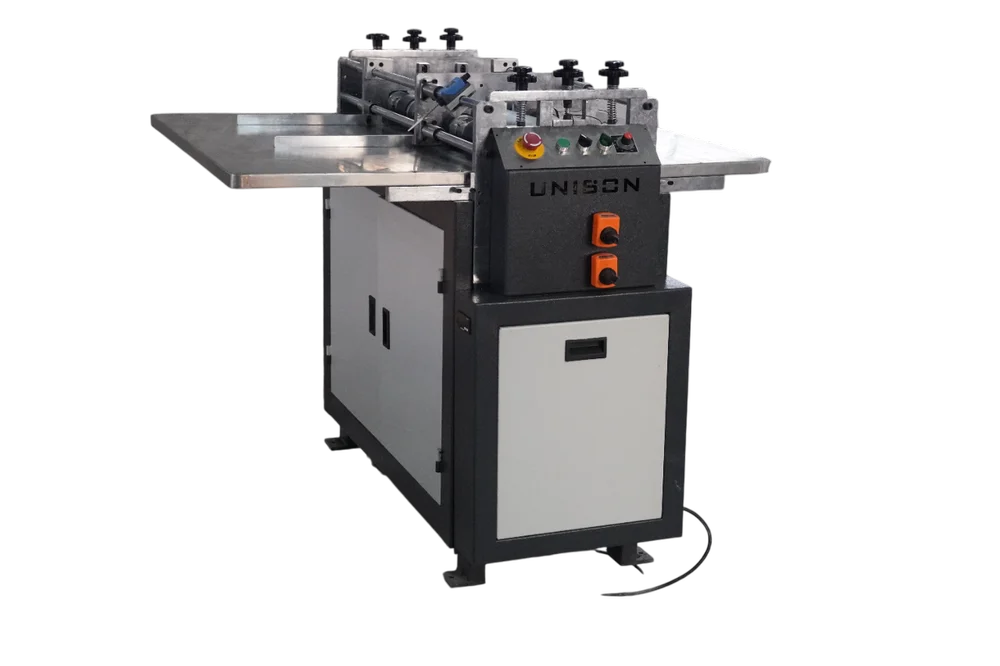

Kappa Board Grooving Machine
| Brand | Unison |
| Power Consumption | 1.5 kW |
| Material | SS |
| Voltage | 220 V |
| Weight | 600 Kg |
| Automation Grade | Semi-Automatic |
| Size/Dimension | 1800 x 1300 x 1200 mm |
| Grooving Width | 30-950 mm |
| Model Name/Number | UGM-100 |
| Phase | Single Phase |
| Feeder | Manual Feeding |
| Length of Paper Board | 50-600 mm |
| Width of Paper Board | 100-850 mm |
| Shape of Grooves | V-Shape |
| Thickness of Paper Board | 1-3.5 mm |
| No. of Grooves at One Time | 5 |
| Knife Seats | 5 |
UGM-100 V-Grooving Machine is capable of cutting few pieces of grooves on the paper board or MDF board, for bending or folding purpose of gift boxes, hardcovers or other packages.
Highlights:
- The cardboard feeder is controlled by linear guide line.
- Supply with high quality durable knife and knife grinder, easy to operate and bring best grooving effect.
- Wide use: Can be used in grooving the paperboard, corrugated board, cardboard, MDF and other paper packaging materials etc.
